| Actions | Basic Information | Basic Dimensions | Mounting Dimensions | Shoulder Dimensions | Basic Load Ratings | Precision & Clearance | Weight & Speed | Brand Cross-Reference | Assembly Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

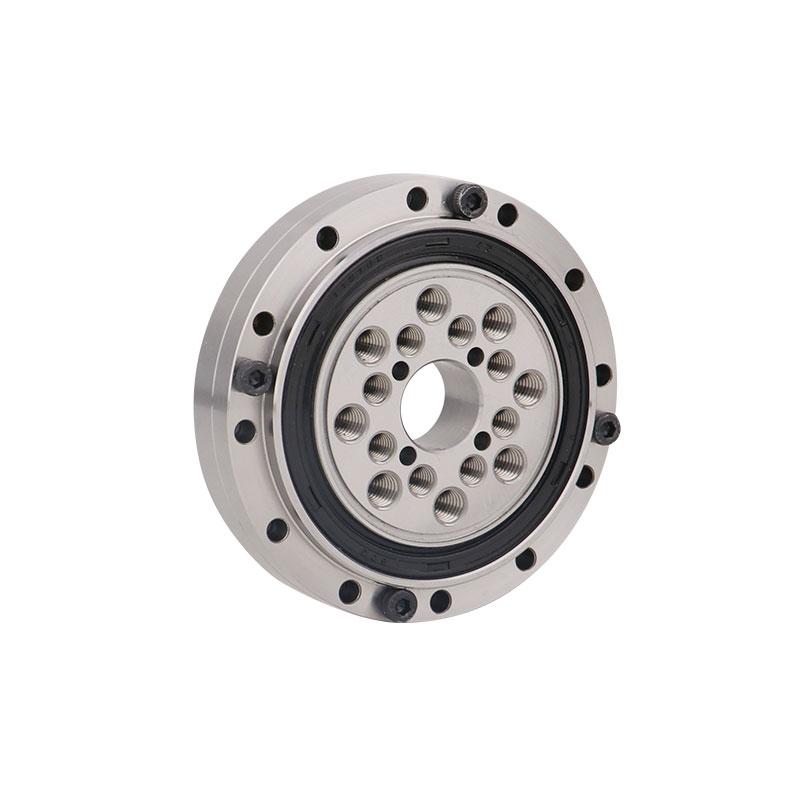

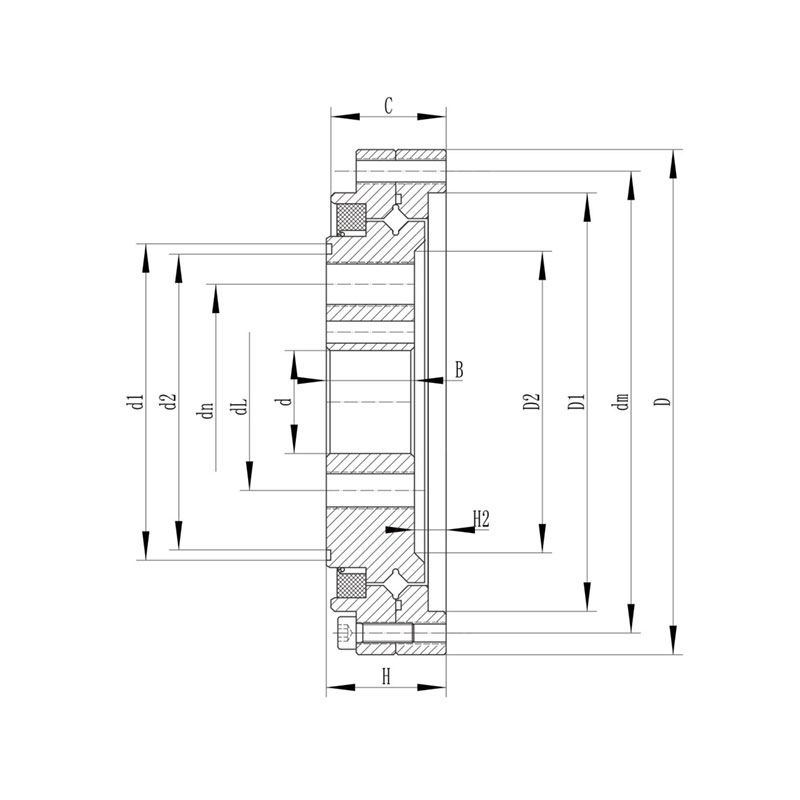

| PDF Download | Inquiry | Model | Series | Nominal Model | Inner Diameter d (mm) |
Outer Diameter D (mm) |
Height H/B (mm) |
H/B (mm) |
B1 (mm) |
dp (mm) |
Roller Pitch Circle Diameter Dpw (mm) |
T (mm) |
H2 (mm) |
S (mm) |
C (mm) |
C1 (mm) |
d1 (mm) |
D1 (mm) |
D2 (mm) |
dn (mm) |
dm (mm) |
d2 (mm) |
d3 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
Chamfer rmin (mm) |
R Fillet Radius |
Inner Ring do (mm) |
Inner Ring ds (mm) |
Inner Ring Ts (mm) |
Inner Ring Mounting Hole Size Seal Back Side |
Inner Ring Mounting Hole Size 2 |
Inner Ring Mounting Dimensions |
Inner Ring Mounting Hole Center Diameter PCD₁ |
Inner Ring Mounting Hole Center Diameter dn (mm) |
Inner Ring Mounting Hole Center Diameter dL (mm) |
Inner Ring Mounting Hole Size 1 |
Inner Ring Mounting Hole Size Seal Front Side |
Inner Ring N | Inner Ring n-ΦN |
Inner Ring n-ΦQ3 |
Outer Ring Mounting Dimensions |
Outer Ring Mounting Hole Center Diameter PCD₂ |
Outer Ring Mounting Hole Center Diameter dm (mm) |
Outer Ring Mounting Hole Size 1 |
Outer Ring Mounting Hole Size 2 Seal Back Side |
Outer Ring W1 | Outer Ring n-ΦW1 |
Outer Ring n-ΦQ1 |
Outer Ring W2 | Outer Ring n-ΦW2 |
Outer Ring n-ΦQ2 |
Outer Ring dL (mm) |
Shoulder Dimensions ds (mm) |
Shoulder Dimensions Dh (mm) |
Radial Static Load Cor (N) |
Radial Dynamic Load Cr (N) |
Axial Static Load Coa (N) |
Axial Dynamic Load Ca (N) |
Dynamic Load Radial (kg) |
Dynamic Load Axial (kg) |
Limit Load Radial Static Load (N) |
Limit Load Radial Dynamic Load (N) |
Thrust (N) |
Moment Static Load (N·m) |
Moment Dynamic Load (N·m) |
Moment (N·m) |
Standard Radial Clearance |
Inner Ring Runout | Outer Ring Runout | Weight (g) |
Weight (KG) |
Limit Speed Grease Lubrication (r/min) |
Bearing Friction Torque (Nm) |
NTN | INA | KAYDON | Inner Ring Quantity | Outer Ring Quantity | Connecting Screw Quantity |
Lifting Hole G | Lifting Hole Quantity | Pitch t Quantity×t |
Screw Tightening Torque MA (Nm) |
Compatible Reducer Type |
| PDF Download | Inquiry | CSF(CSG)14 | — | — | 11 | 55 | 16.5 | 13.5 | — | — | — | — | 4 | — | 16 | — | 29.8 | 41.8 | 29 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 9.1 | 7 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.15 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)17 | — | — | 10 | 62 | 16.5 | 13.5 | — | — | — | — | 4 | — | 16 | — | 36 | 49 | 34 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 10.7 | 7.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.24 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)20 | — | — | 14 | 70 | 16.5 | 13.5 | — | — | — | — | 4.5 | — | 16 | — | 43 | 56.5 | 41 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 13.4 | 8.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.3 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)25 | — | — | 20 | 85 | 18.5 | 16.5 | — | — | — | — | 3.5 | — | 18 | — | 55.3 | 67 | 52.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 21.6 | 13.8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.45 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)32 | — | — | 26 | 112 | 22.5 | 19 | — | — | — | — | 4.5 | — | 21.5 | — | 74 | 90 | 68 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 35.6 | 12.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.9 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)40 | — | — | 32(24) | 126 | 24 | 21.5 | — | — | — | — | 4.5 | — | 22.5 | — | 86 | 105 | 86 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 38.9 | 25.9 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.3 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)50 | — | — | 40(32) | 157 | 31 | 28 | — | — | — | — | 5 | — | 30 | — | 108 | 131.6 | 103 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 85 | 49.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 2.8 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF Download | Inquiry | CSF(CSG)65 | — | — | 52(44) | 210 | 39 | 35 | — | — | — | — | 7 | — | 37 | — | 138 | 176 | 132 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 133 | 74.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 7.9 | — | — | — | — | — | — | — | — | — | — | — | — | — |
